X-FB-0.81 Fiberglass Insulated Thermocouple Cable Type K 100M/Coil Extension Class I

Brand Name : Ohmalloy/OEM

Model Number : SP-K-FB-0.81

Certification : IEC/ASIN/JIS

Place of Origin : shanghai

MOQ : 100 meters

Payment Terms : L/C, T/T, , MoneyGram，paypal

Supply Ability : 3000meter/day

Delivery Time : 5-8 working days after payment confirmed

Packaging Details : Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)

Product Name : KX-FB-0.81 Fiberglass Insulated Thermocouple Cable Type K 100M/Coil Extension Class I

Material : + Chromel -Alumel

Accuracy : Class I

Color Standard : ANSI/IEC

Package : Spool+waterproof carton （100meter/roll）

Material No. : KX-FB-0.81

Warranty : 3 years

Contact Now

KX-FB-0.81 Fiberglass Insulated Thermocouple Cable Type K 100M/Coil Extension Class I







X-FB-0.81 Fiberglass Insulated Thermocouple Cable Type K 100M/Coil Extension Class I

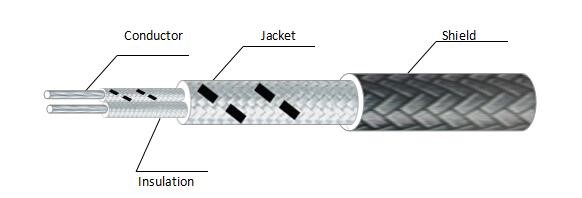

For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.



In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.



1. The Compensation Wire Name and Code

Compensation Alloy Wire Name Positive Negative
Name Code Name Code
Copper-Copper Nickel 0.6 Copper SPC Copper Nickel 0.6 SNC
Copper-Copper Nickel 0.6 Copper RPC Copper Nickel 0.6 RNC
Iron-Copper Nickel 22 Iron KPCA Copper Nickel 22 KNCA
Copper-Copper Nickel 40 Copper KPCB Copper Nickel 40 KNCB
Chromel-NiSi3 Ni90Cr10 KPX Ni97Si3 KNX
Iron-Copper Nickel 18 Iron NPC Copper Nickel 18 NNC
NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
NiCr10-Copper Nickel 45 NiCr10 EPX Copper Nickel 45 ENX
Iron-Copper Nickel 45 Iron JPX Copper Nickel 45 JNX
Copper-Copper Nickel 45 Copper TPX Copper Nickel 45 TNX





2. How To Choose Thermocouple



Type Insulation material CODE Inner Shielding CODE JACKET CODE Out shielding CODE Pairs solid Earth wire Stranded
K FEP FP     FEP FP     0 0.2mm E cross section+R
T PFA FA Al foil AL PFA FA copper wire CU 2 0.3mm
E PVC 70℃ LP copper wire CU PVC 70℃ LP Tinned copper TC 3 0.5mm
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP Nickel plated copper NC 4 0.75mm
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL Silver plated copper AC 5 1.0mm
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM SS 304 wire SS 6 1.5mm
  Fiberglass700℃ BH     Fiberglass700℃ BH
  MICA FIBER 650℃ MA
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS     7 2.5mm
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV     8
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF     9
  PTFE PT     PTFE PT
  ETFE ET     ETFE ET
  KAPTON KP     KAPTON KP
  Silcone rubber SR     Silcone rubber SR
  Rubber RU     Rubber RU
  PE PE     PE PE

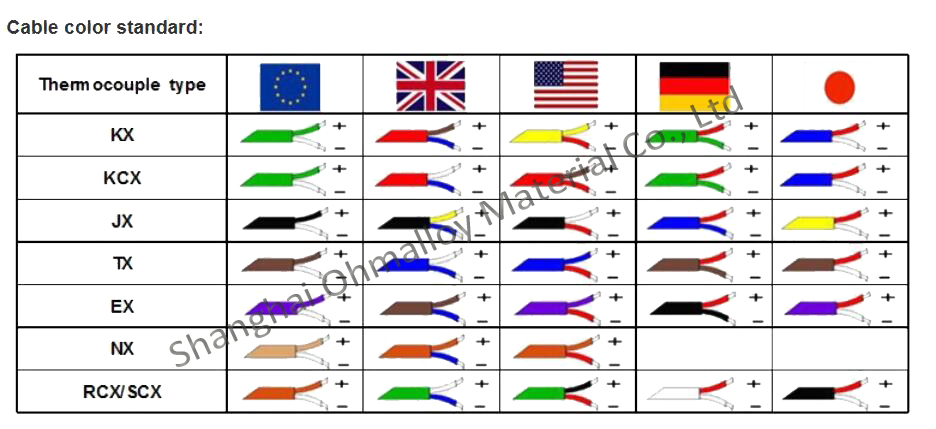

3. Color Standard Reference

X-FB-0.81 Fiberglass Insulated Thermocouple Cable Type K 100M/Coil Extension Class I
